FPCB - BARE - 2835-60D-80R-9.6MM-12V-0805-X 25/50-FPCB - BARE - 2835-240D-80R-9.6MM-12V-0805-X 25/50

Name: FPCB - BARE - 2835-60D-80R-9.6MM-12V-0805-X 25/50-FPCB - BARE - 2835-240D-80R-9.6MM-12V-0805-X 25/50
Brand: Guangdong HongQi Advanced Materials Co., Ltd.
SKU: HQ49512
Availability: InStock

Ονομασία μάρκας:	HONGQI
Αριθμός μοντέλου:	HQ49512
MOQ:	500pcs
τιμή:	Διαπραγματεύσιμα
Χρόνος παράδοσης:	Διαπραγματεύσιμος
Όροι πληρωμής:	L/c, d/p, t/t

Λεπτομέρειες

Περιγραφή του προϊόντος

Λεπτομέρειες

Τόπος καταγωγής:

Guangdong, Κίνα

Πιστοποίηση:

UL E477885 IATF16949 GB/T 16949

Βαθμολογία τάσης:

12V

Δυναμικό:

12V

Μήκος:

100mm

Αριθμός LED:

Μέθοδος μάρκετινγκ:

Εργοστασιακές άμεσες πωλήσεις

Αντοχή:

Μακροχρόνιος

Αριθμός στρωμάτων:

Διπλή όψη

Πλάτος:

8mm

Κρίμα:

Πωλητής:

Λευκό

Μηχανική ακαμψία:

Εύκαμπτος

Πάχος χαλκού:

2oz

Μονωτική ουσία:

ΠΙ

Εφαρμογή:

Εσωτερικός/υπαίθριος φωτισμός

Εγγύηση:

2 χρόνια

Συσκευασία λεπτομέρειες:

Συσκευασμένα με ισχυρές θήκες χαρτιού

Δυνατότητα προσφοράς:

100000 τεμάχια το μήνα

Επισημαίνω:

LED FPC flexible circuit board

2835 LED FPC strip

12V LED FPC with warranty

Περιγραφή του προϊόντος

Technical Specification and Customization Service of HQ046 LED Light Strip FPC

Abstract

Flexible Printed Circuits (FPC) are critical components in modern LED light strip applications, demanding high flexibility, reliability, and customization adaptability. This paper details the technical parameters, performance characteristics, and service 流程 of the HQ49512 LED light strip FPC, a double-layer flexible circuit board designed for diverse lighting scenarios. It also elaborates on the manufacturer’s customization capabilities, quality control measures, and technical support system, providing a comprehensive reference for industry practitioners selecting LED light strip FPC solutions.

1. Product Overview of HQ046 LED Light Strip FPC

The HQ046 is a specialized FPC engineered for LED light strip applications, integrating structural stability and environmental adaptability. Its core attributes are as follows:

Parameter	Specification
Product Model	HQ49512
Product Name	LED Light Strip FPC
Circuit Structure	Double-layer circuit board
Surface Coating	Double-sided black solder mask; black text
Antioxidant Treatment	OSP (Organic Solderability Preservative)
Core Performance	High flexibility; excellent bending resistance

2. Technical Specifications and Customization Range

As a professional FPC manufacturer with 16 years of experience, we offer comprehensive customization for LED light strip FPCs, covering single-layer, double-layer, and multi-layer structures. Key technical parameters and customization options are detailed below:

2.1 Dimensional Specifications

Precision FPC: Maximum size: 240×500mm (limit: 250×500mm); minimum size: no restriction.
Roll Material FPC: Maximum width: 240mm; maximum length: 100 meters.

2.2 Circuit Layer Configuration

FPC layer selection is determined by application complexity, with the following typical scenarios:

Single-layer FPC: Simple structure, suitable for low-complexity circuits in industrial controls, electronic instruments, and basic lighting systems.
Double-layer FPC: Dual copper foil layers with enhanced vias for conductive paths, ideal for high-integration products such as mobile devices, automotive instruments panels, and mid-to-high-end LED light strips.
Multi-layer FPC: Customizable for ultra-high-complexity applications requiring dense wiring and multi-signal transmission.

2.3 Solder Mask Color and Application

Solder mask color is optimized for specific functional and aesthetic requirements:

Yellow Solder Mask: Universal option for most products (e.g., general cable assemblies) due to its cost-effectiveness and compatibility.
Black Solder Mask: Preferred for high-end or light-absorbing applications (e.g., automotive lighting, smartphone backlights, LED displays) to reduce light reflection and improve visual consistency.
White Solder Mask: Equipped with an additional white coating for enhanced reflectivity, suitable for lighting fixtures, LED displays, and medical aesthetic devices.

2.4 Copper Foil Thickness

Copper foil thickness is tailored to current-carrying capacity and flexibility needs:

Precision FPC:
- Single-layer: 18μm (0.5oz), 35μm (1oz)
- Double-layer: 12μm (0.33oz), 18μm (0.5oz), 35μm (1oz)
Standard FPC:
- Single-layer: 18μm, 25μm, 35μm (1oz), 50μm
- Double-layer: 18-25μm, 25-25μm, 35-35μm, 35-70μm

2.5 Minimum Line Width/Spacing

The minimum line width and spacing are critical to FPC precision. While finer dimensions are achievable, 3mil (0.076mm) is recommended as the practical minimum to balance manufacturing yield and cost-effectiveness. Smaller dimensions may increase production difficulty and defect rates.

3. Core Performance and Quality Control

3.1 Flexibility and Bending Resistance

The HQ046 FPC exhibits exceptional flexibility, validated through rigorous quality control:

A professional bending tester is used to evaluate each batch of materials.
All materials undergo tens of thousands of bending cycles before mass production, ensuring resistance to fatigue failure in dynamic application scenarios (e.g., foldable lighting, curved surfaces).

3.2 Manufacturing Capabilities

The manufacturing facility is equipped with advanced equipment from Germany, Japan, and Taiwan, supporting large-scale and high-precision production:

Factory area: Approximately 20,000 square meters
Workforce: Over 800 employees, including 50 senior technical specialists
Production lines: Specialized in both sample expediting and batch manufacturing

4. Customization Service Process

To meet diverse customer needs, we provide a streamlined, one-stop customization service:

4.1 Consultation and Technical Support

Leveraging 16 years of expertise in FPC design, R&D, and manufacturing, we offer:

Personalized solution design
Drawing optimization
New product development support
Professional technical consultation

4.2 Quotation

We provide competitive pricing for samples and batch orders, with cost optimization through:

Standardized technical processes
High-quality material sourcing
Efficient production management

4.3 Design and Integration

Our services cover the entire FPC value chain, including:

Substrate production
Circuit wiring and schematic design
Mold development
SMT (Surface Mount Technology) and through-hole assembly
Steel mesh fabrication
All processes comply with international certifications to ensure reliability.

4.4 Sample Fabrication

An expedited production line is dedicated to sample manufacturing, with lead times as short as 5-7 days for double-layer FPC samples, enabling rapid prototyping and verification.

5. Certifications and Notes

Certifications: The product line holds multiple international system certifications (details available upon request), ensuring compliance with global industry standards.
Image Disclaimer: All product images on the official platform are authentic. Minor color variations may occur due to lighting, shooting angles, or display resolution differences.
Continuous Upgrade: Our FPC products undergo annual updates and upgrades to align with emerging technological requirements.

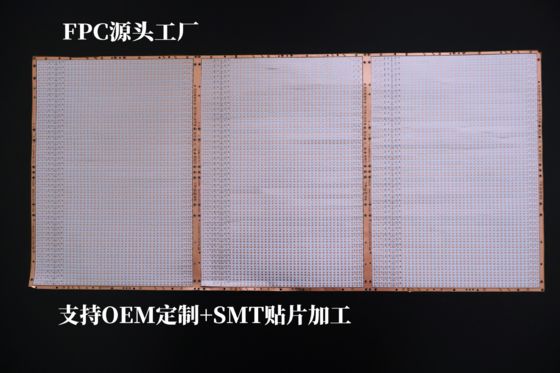

FPCB - BARE - 2835-60D-80R-9.6MM-12V-0805-X 25/50-FPCB - BARE - 2835-240D-80R-9.6MM-12V-0805-X 25/50 0

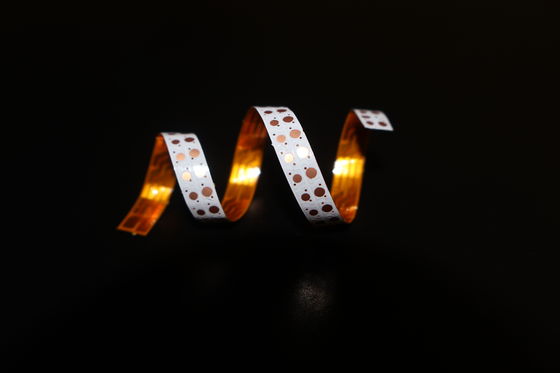

FPCB - BARE - 2835-60D-80R-9.6MM-12V-0805-X 25/50-FPCB - BARE - 2835-240D-80R-9.6MM-12V-0805-X 25/50 2

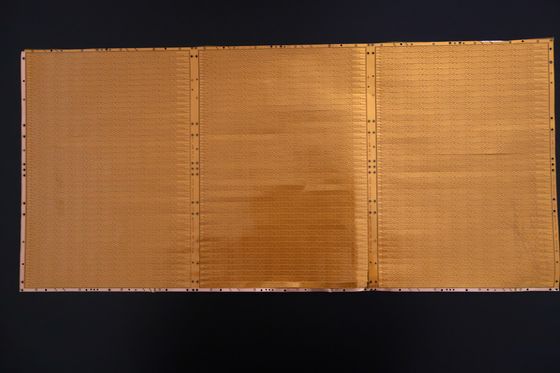

FPCB - BARE - 2835-60D-80R-9.6MM-12V-0805-X 25/50-FPCB - BARE - 2835-240D-80R-9.6MM-12V-0805-X 25/50 3

6. Contact Information

For customized solutions or further inquiries, please contact our professional sales team via online consultation or email for one-on-one support.

GongDong HongQi Electronics Co., Ltd. – Your Trusted Partner for High-Quality FPC Solutions Since 2009.
